LoRA Messenger

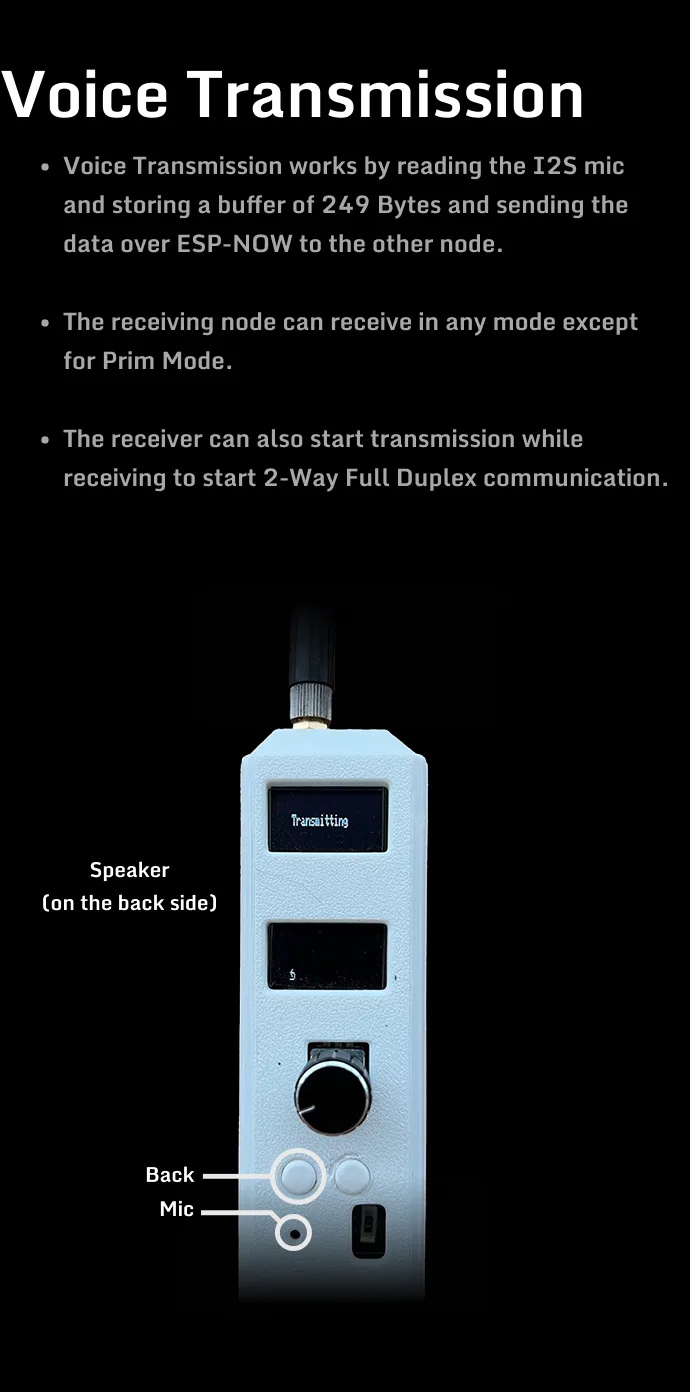

I started this project with the goal of learning how to use the ESP32 microcontroller. With help from YouTube and ChatGPT, I created "Brolocator", a device that lets you send messages over long distances without internet. It can also perform crude full-duplex 2-way voice transmissions within range of ESP-NOW.

Built with
PhotoshopVS CodeOnshapeKiCADESP32PlatformIO

Demo Video

Functionality

  • Use LoRA for long distance messaging
  • 2-way voice communication when in range of ESP-NOW
  • Powered off rechargeable LiPo batteries
  • 2 displays
  • A mode for range testing
  • Decent and simple to use UI

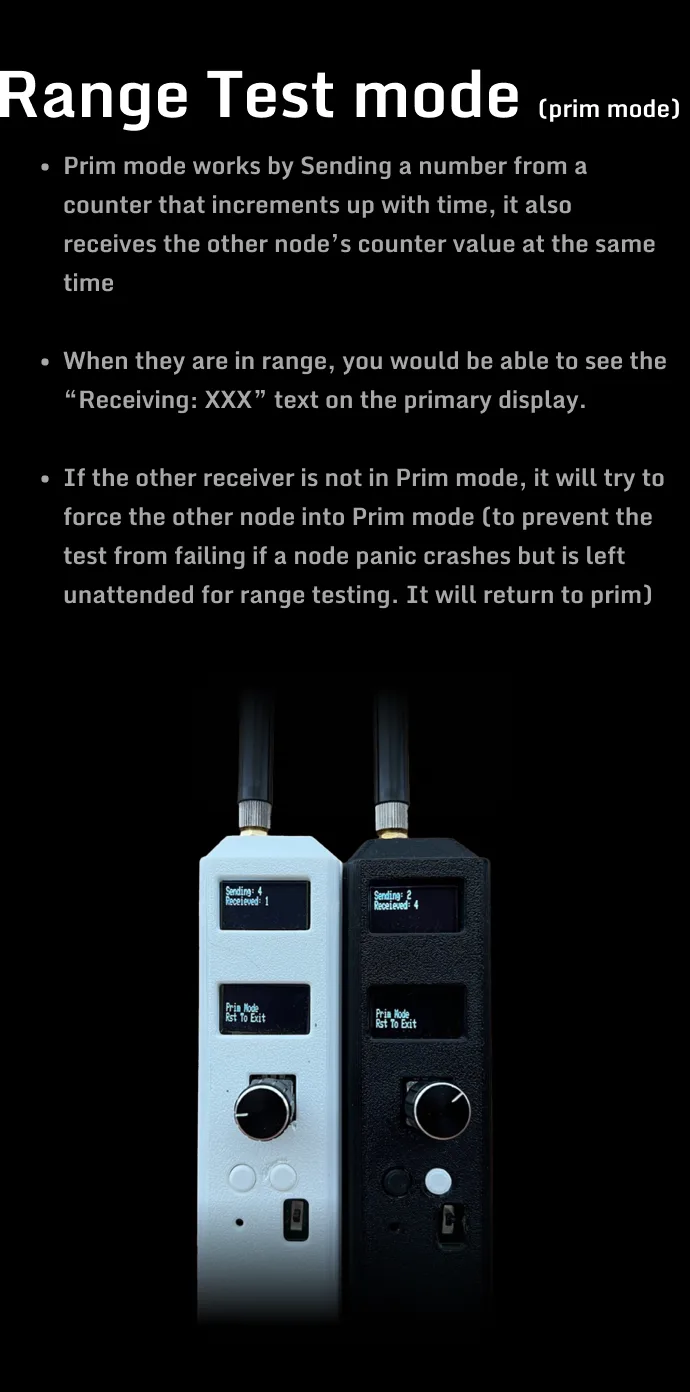

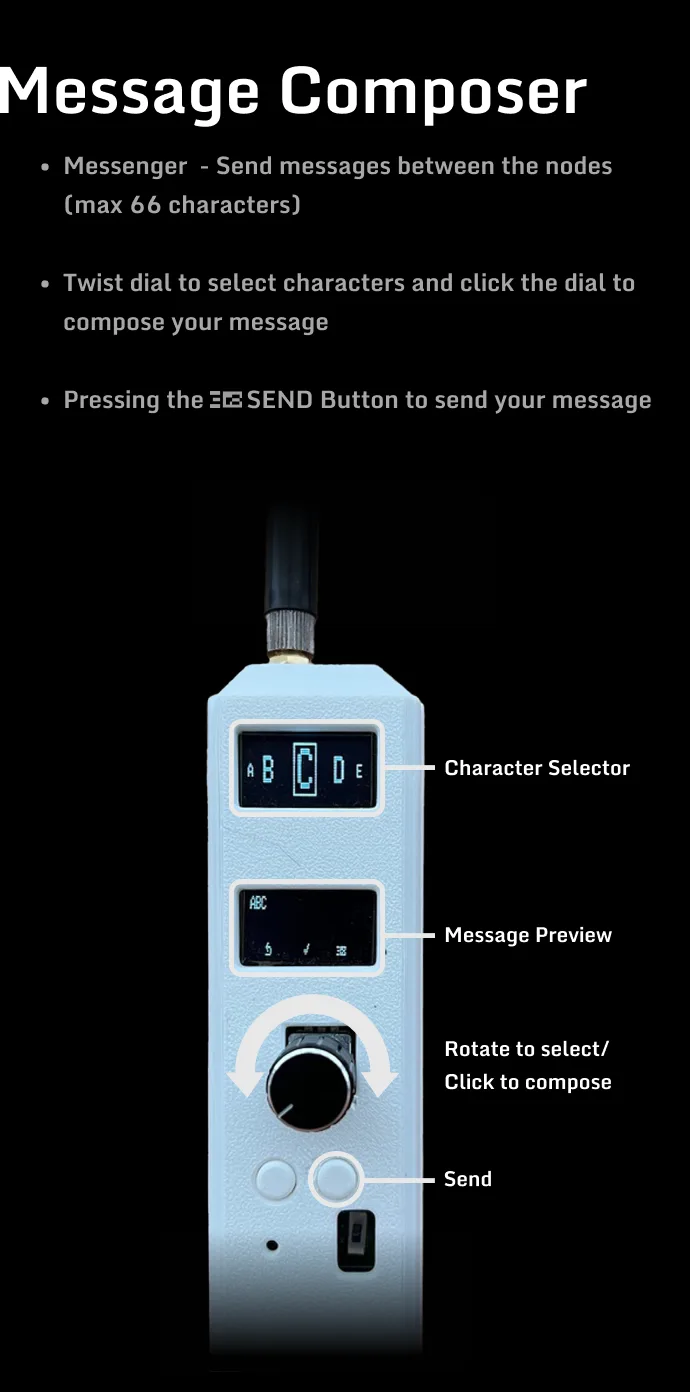

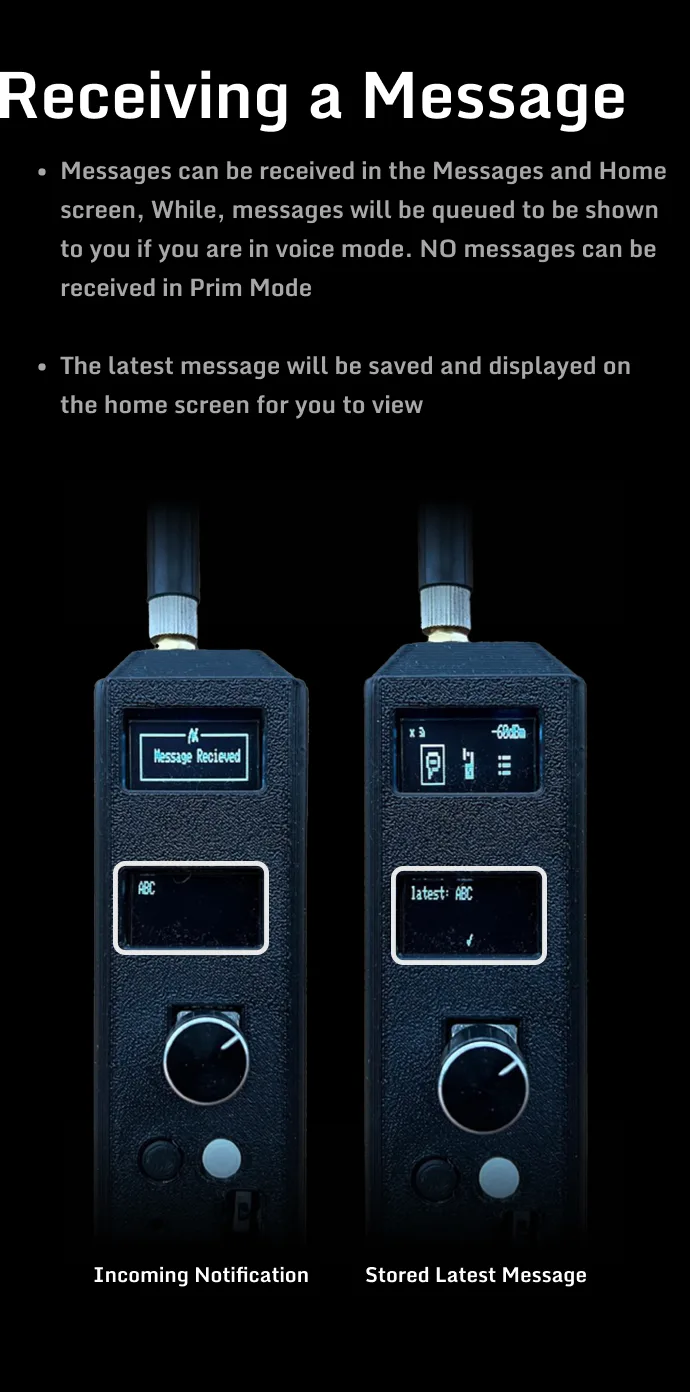

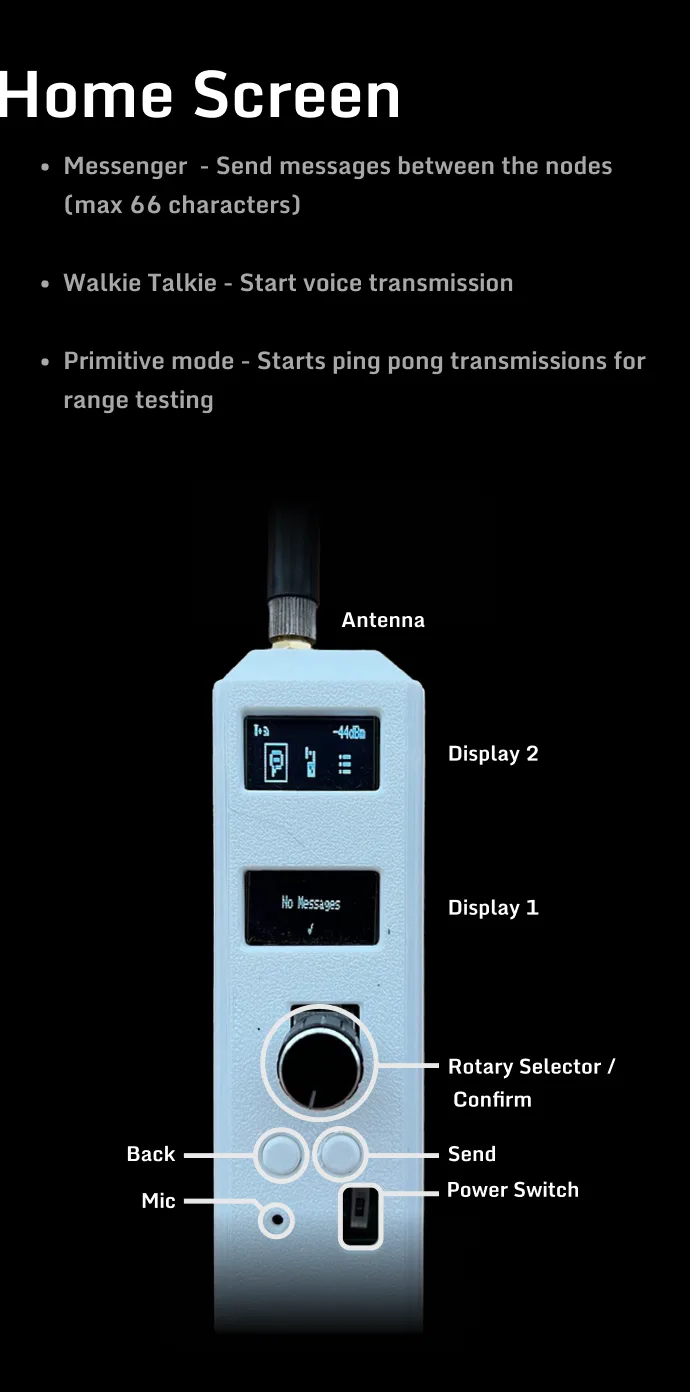

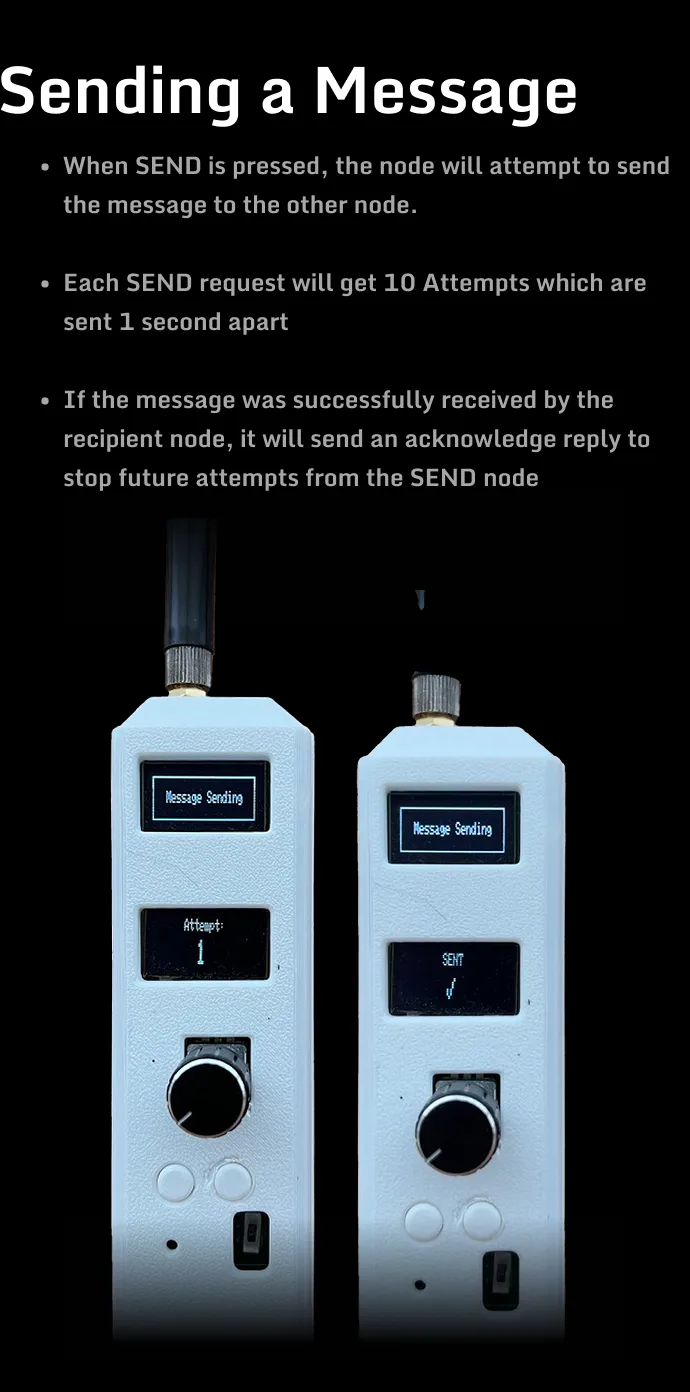

Brolocator device front viewBrolocator device side viewBrolocator display close-upBrolocator UI screenshotBrolocator messaging interfaceBrolocator range test mode

Project Development

Brolocator is my first deep dive into microcontrollers, and also my first attempt at designing a PCB. I used PlatformIO to code the ESP32, and with some help from YouTube and ChatGPT, I was able to learn how to use each component to build the Brolocator.

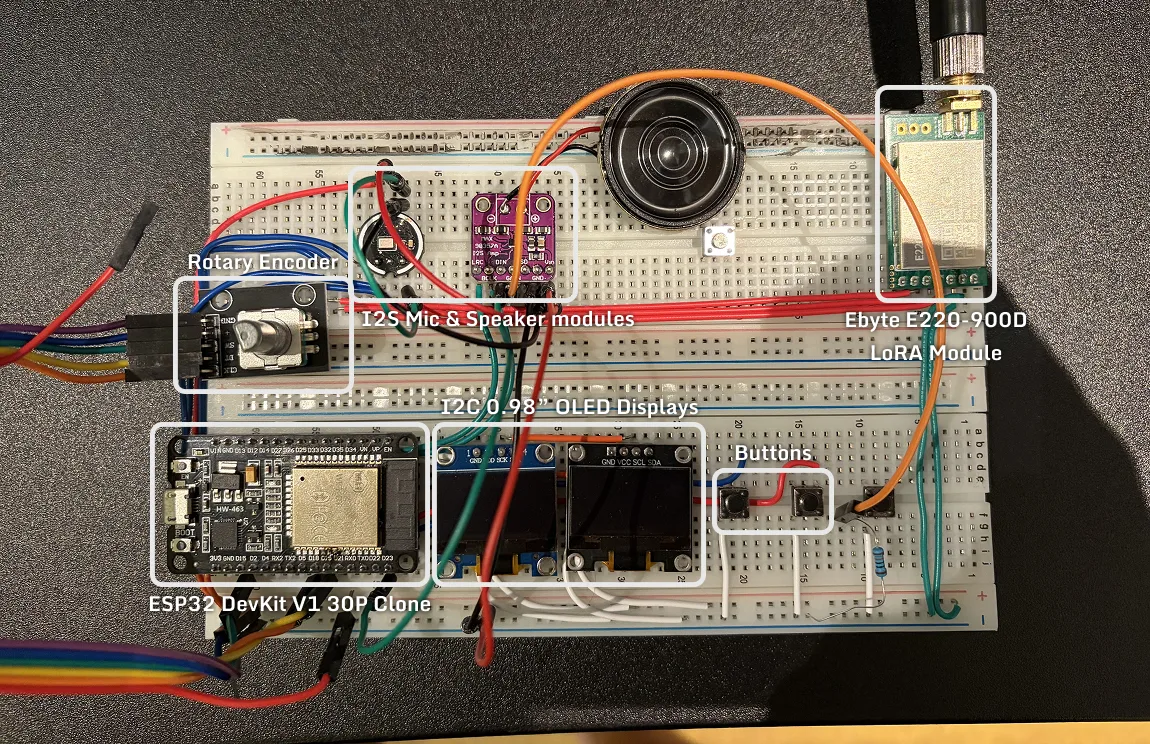

Development of the Brolocator
Development of the Brolocator

Code

Based on my research, PlatformIO was the best choice for developing code for the ESP32. You can download the PlatformIO project files below.

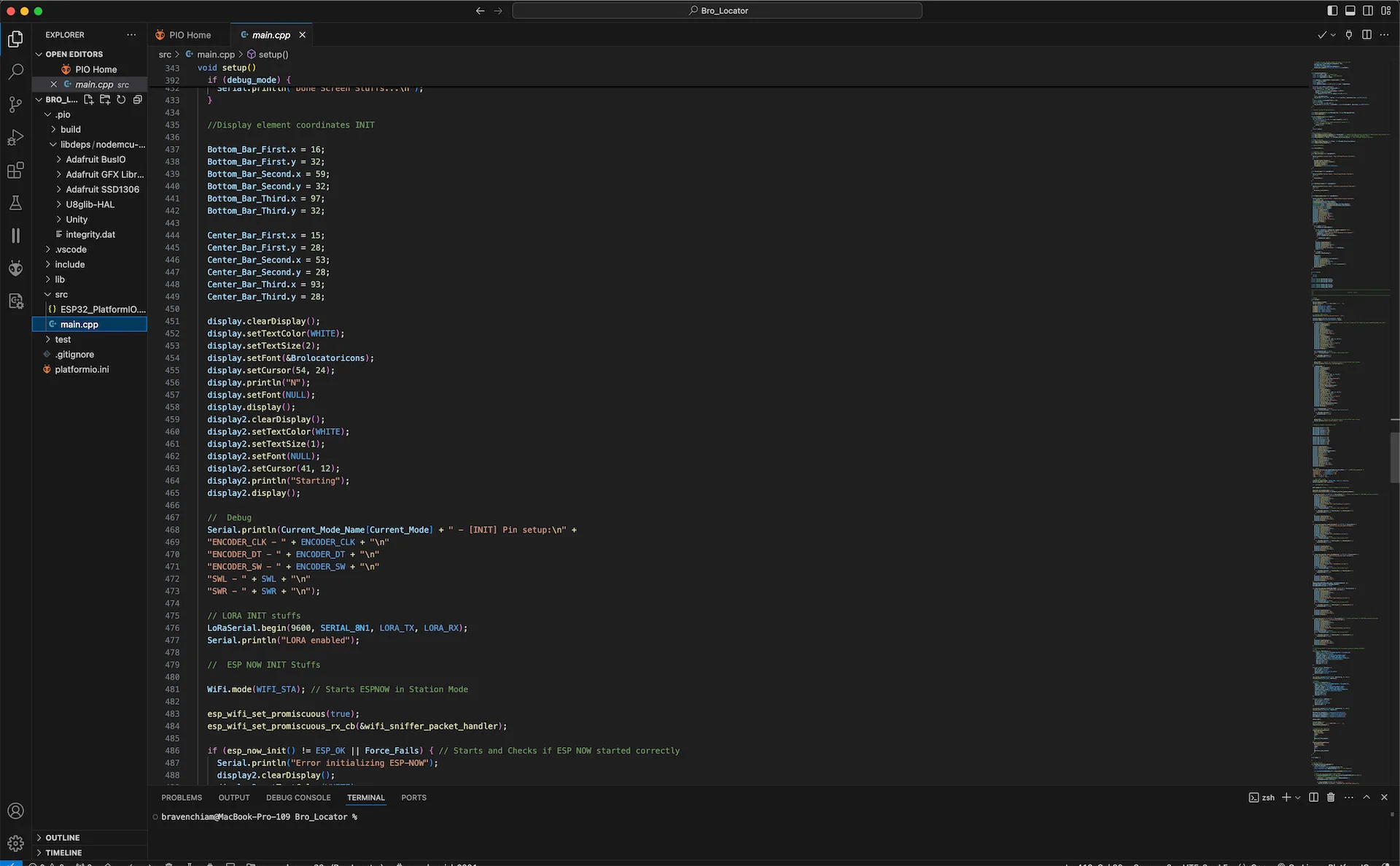

PlatformIO code screenshot
PlatformIO Project FilesDownload the full PlatformIO project for the Brolocator ESP32 firmware.
Download Project

PCB Design

I used KiCAD to design a PCB for all the components. You can download the KiCAD files below.

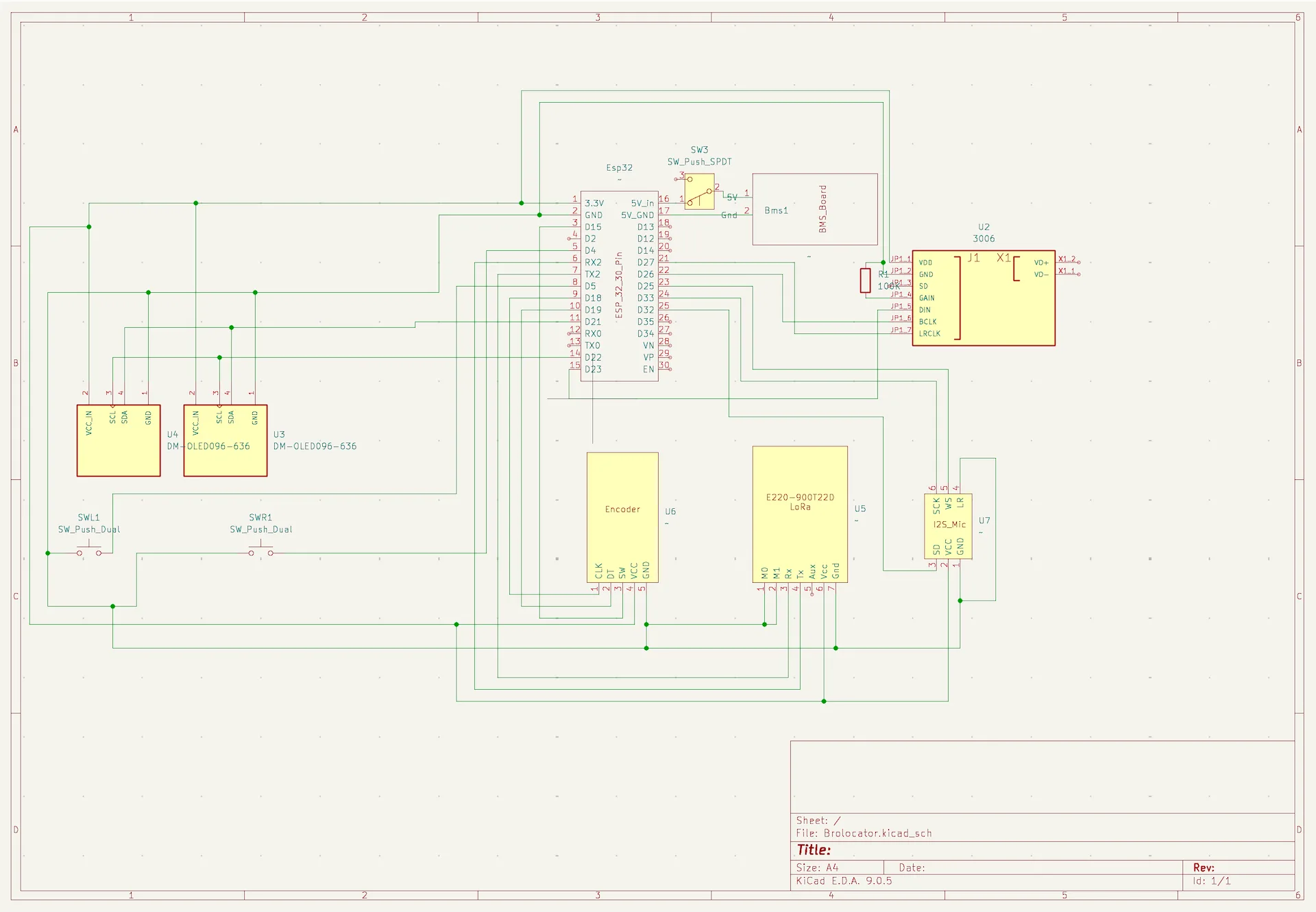

KiCAD schematic for Brolocator PCB
Schematic

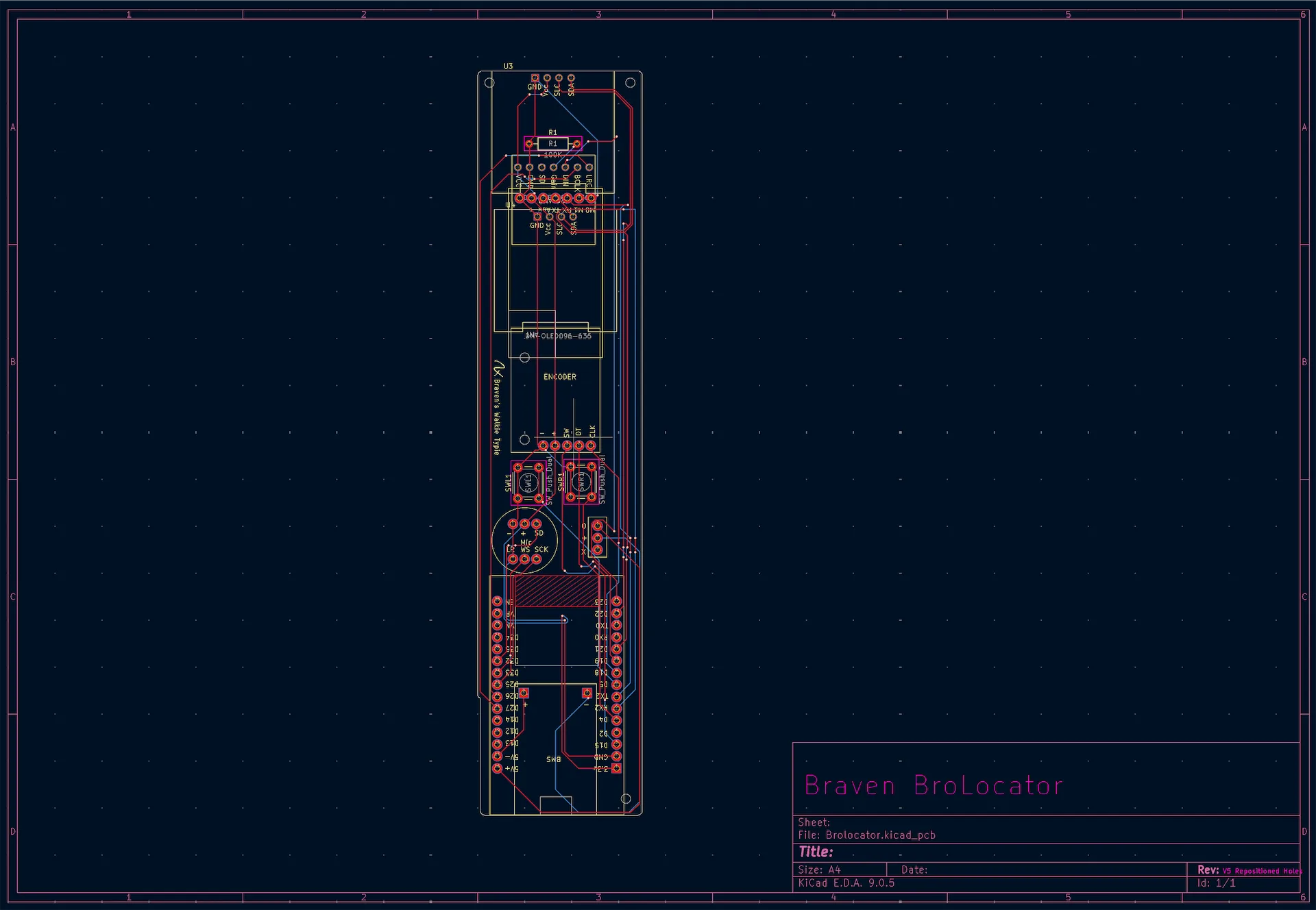

KiCAD PCB board layout
Board

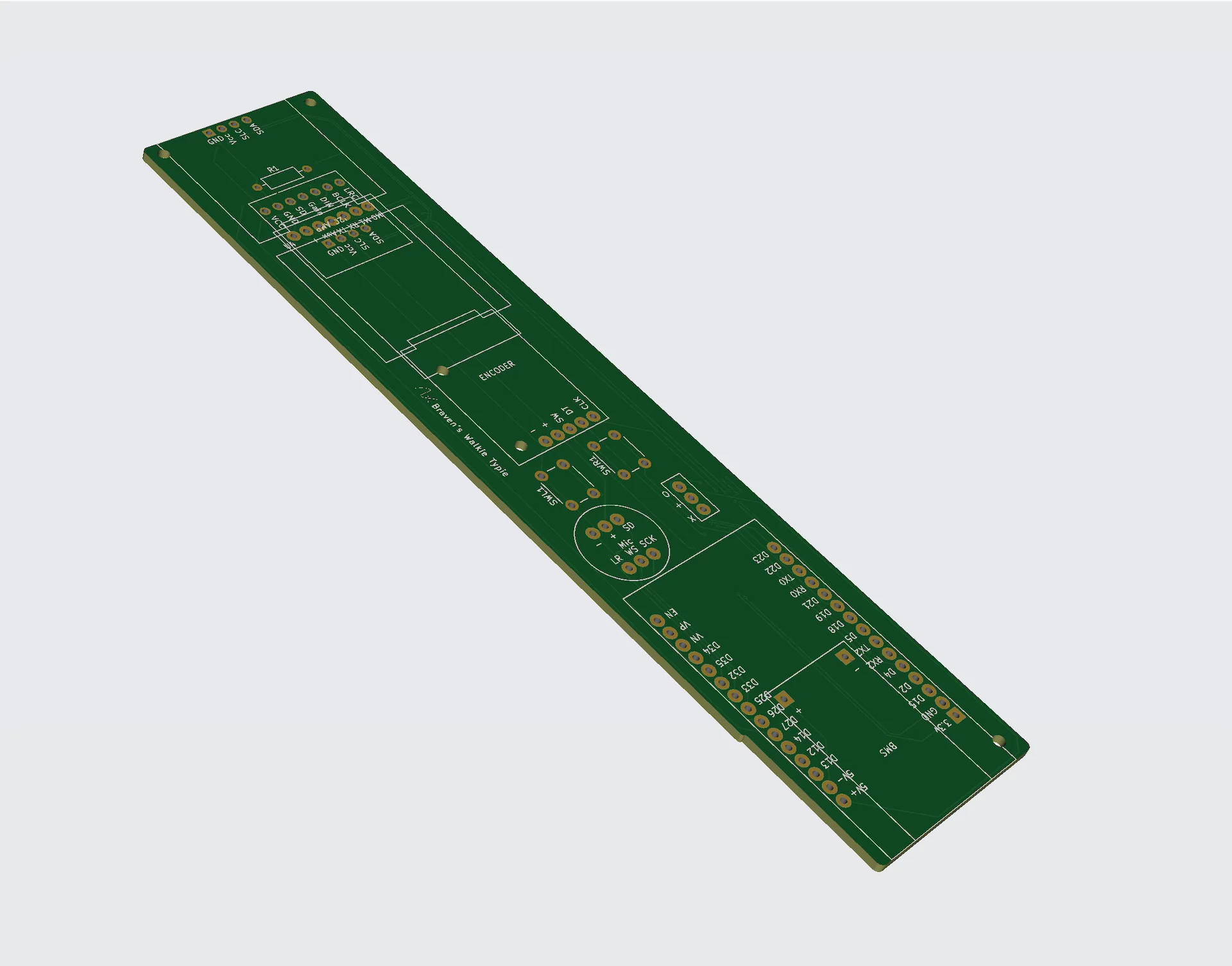

Finished Brolocator PCB
KiCAD PCB FilesDownload the full KiCAD project for the Brolocator PCB design.
Download KiCAD Files

3D Design

I used Onshape to design a case for the board. You can get the files and view a live preview of the model below.

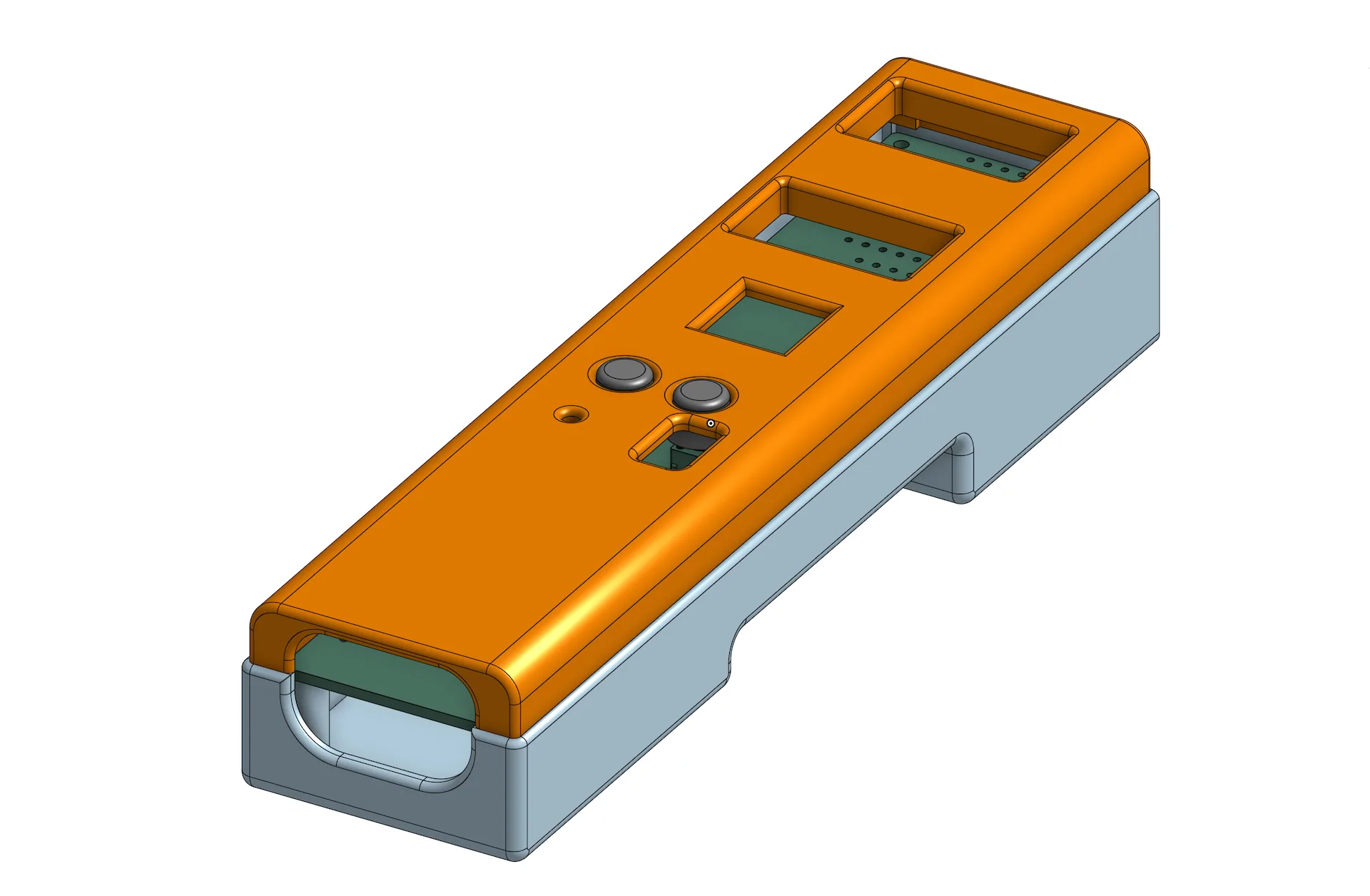

3D model of the Brolocator case
3D model of the Brolocator case

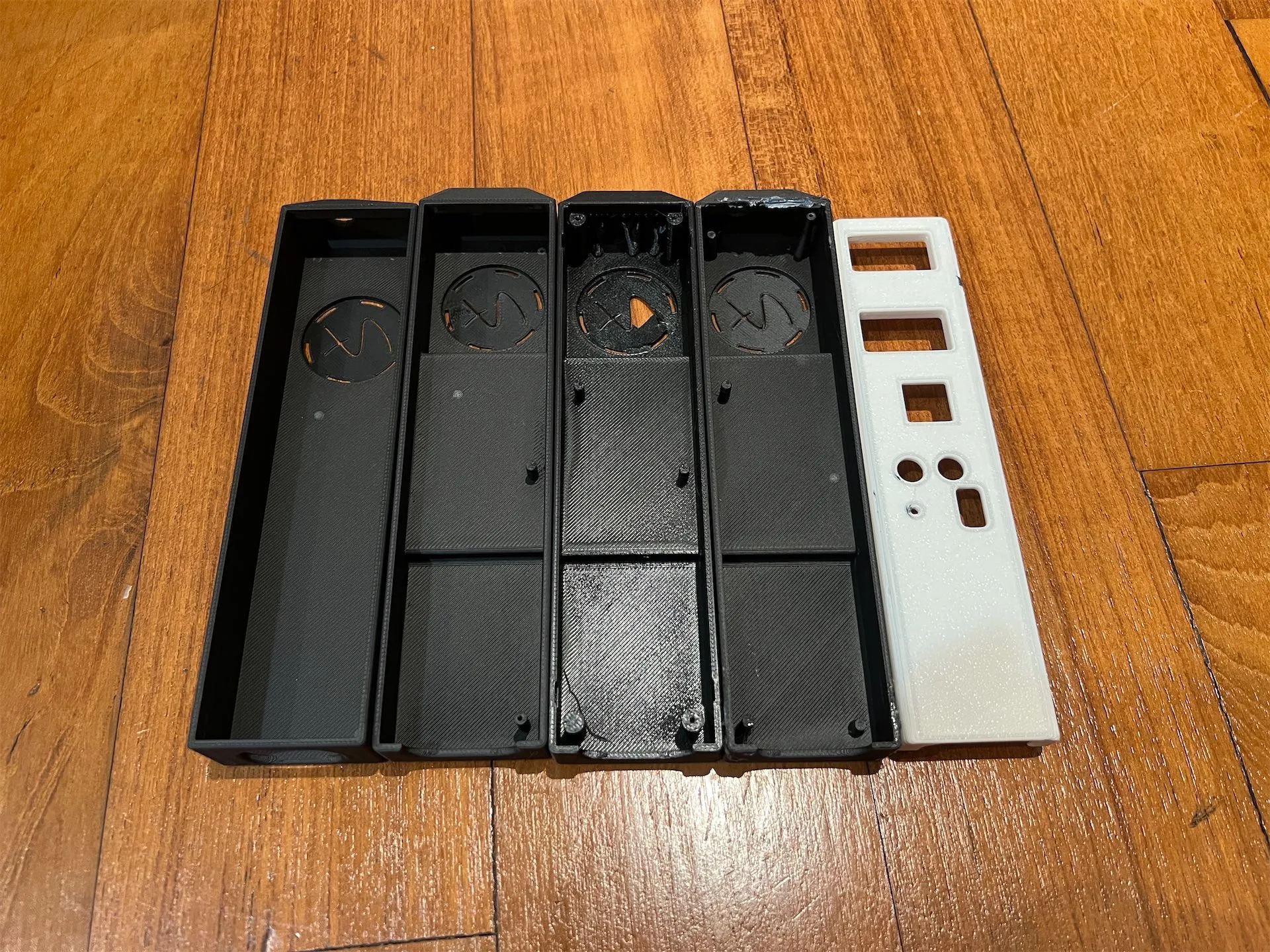

Design iterations for the Brolocator case
Design iterations
Design failures and lessons learned
Learning from design failures
Onshape 3D ModelView the live interactive 3D model of the Brolocator case on Onshape.
View on Onshape

Assembly

Assembly of all components together.

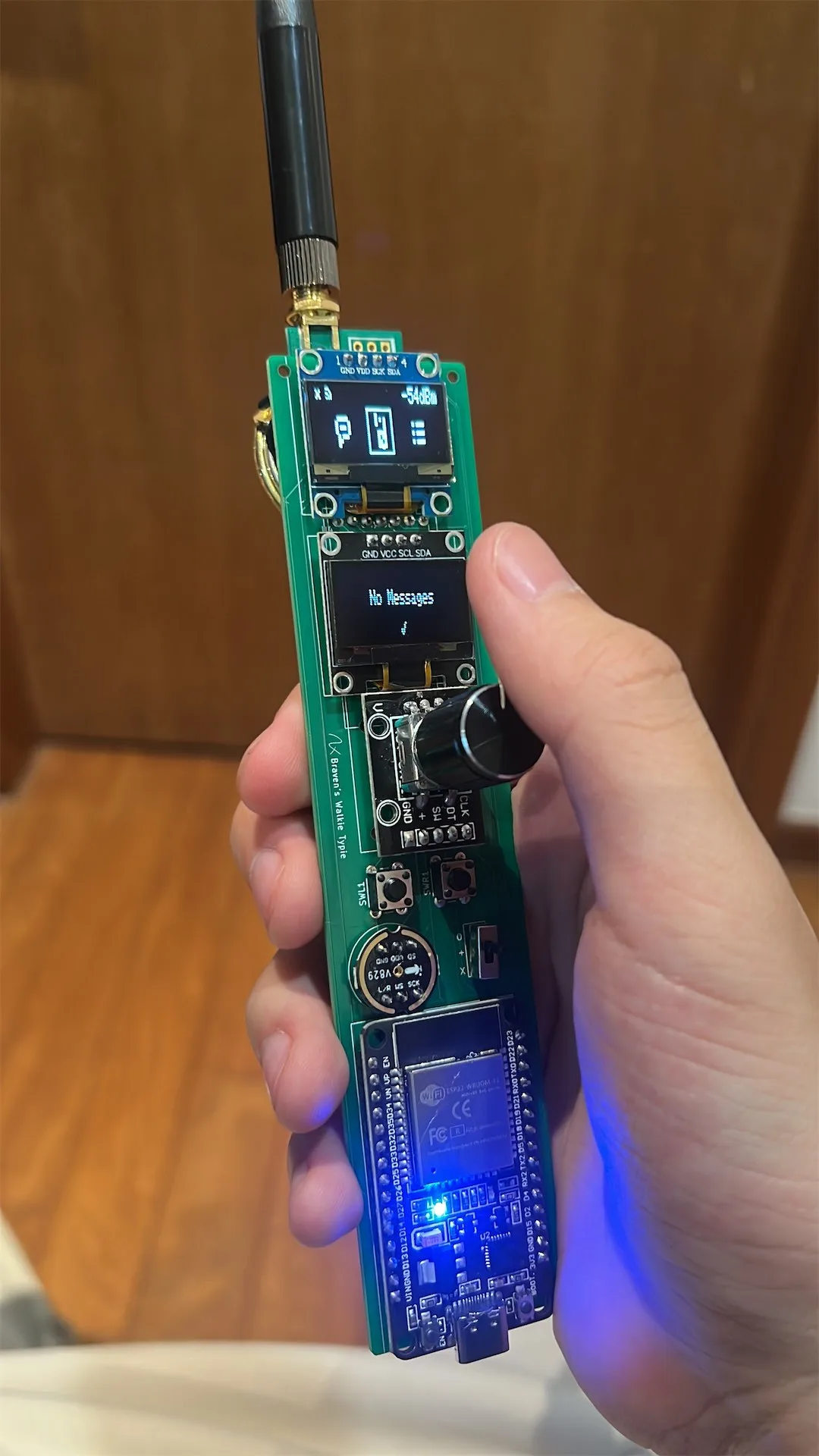

All components soldered to the PCB and working
All components soldered to the PCB and working

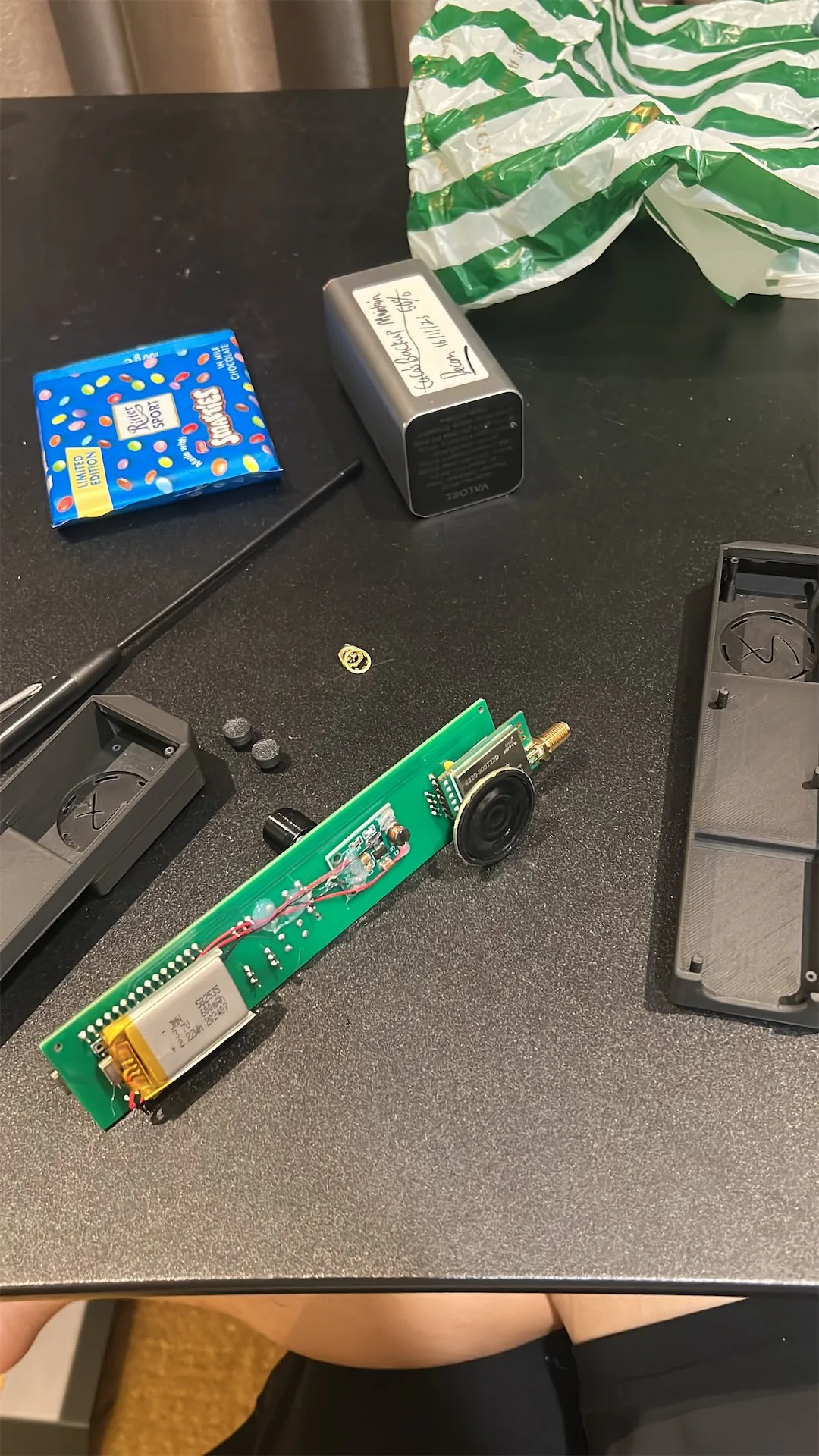

Fitting PCB into the case
Fitting PCB into case

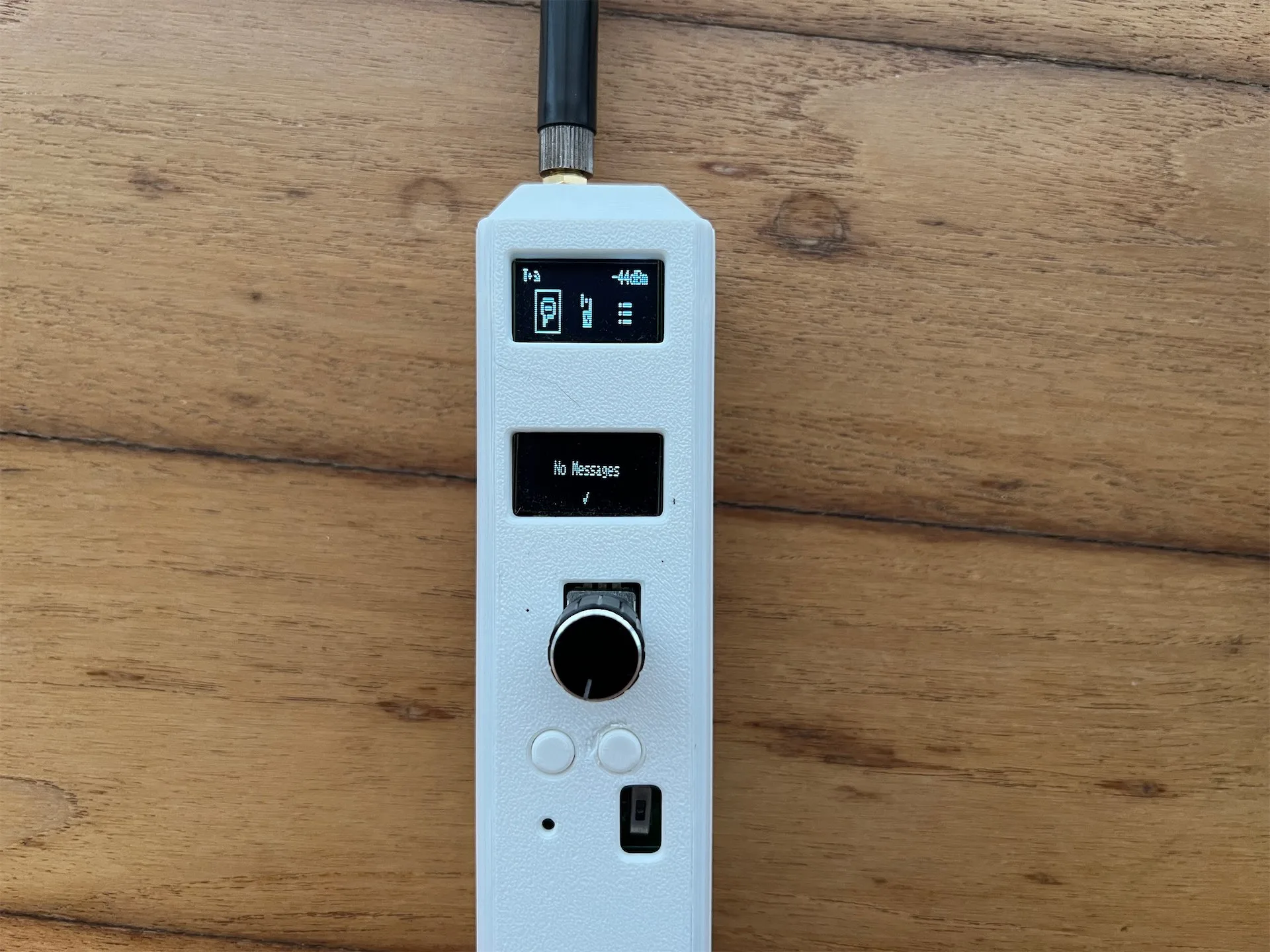

Completed Brolocator device
Complete
