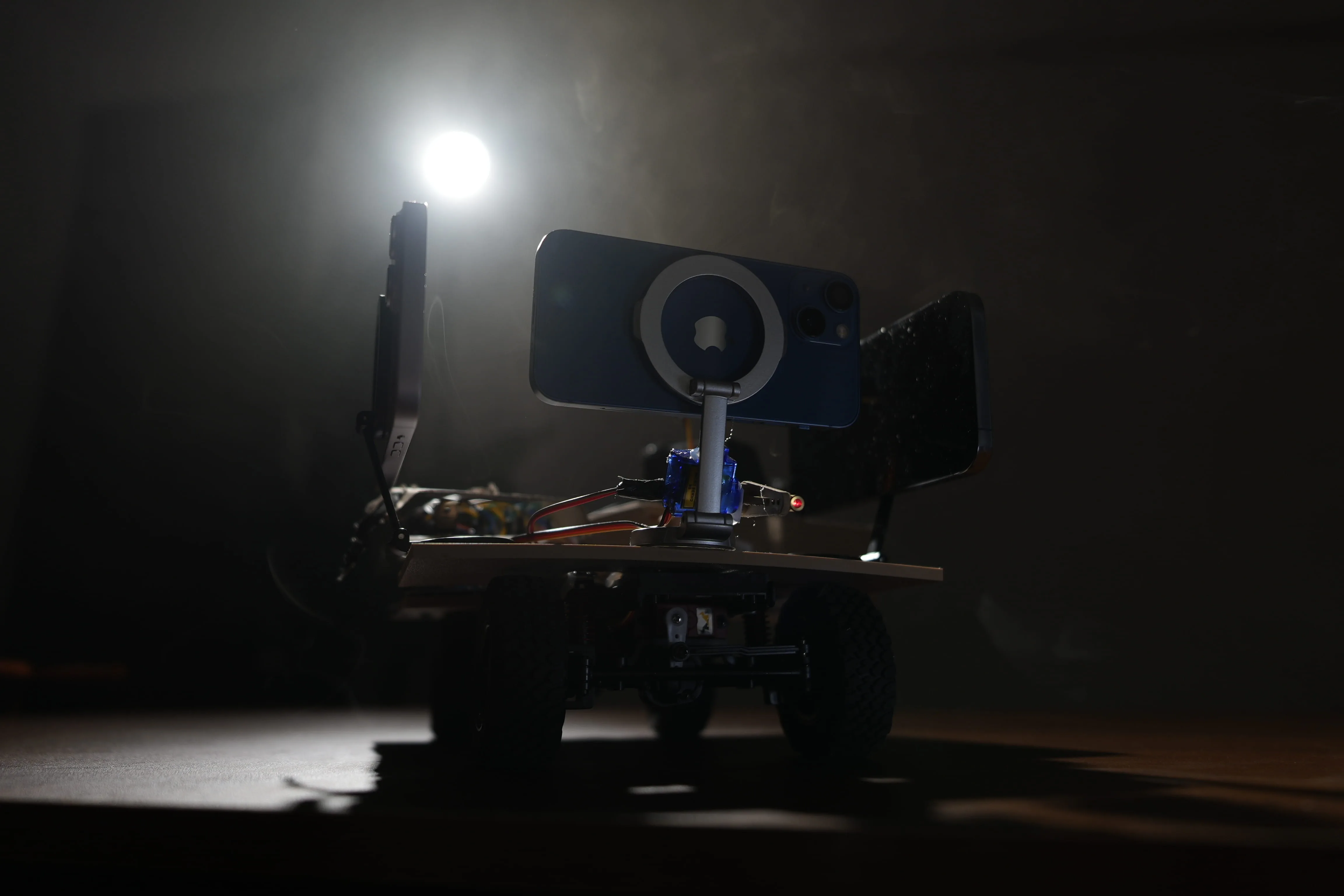

Project June
I planned to build Project June in two weeks, but it took me three. It was definitely rushed, and there are a lot of things I wish I had done differently. Even so, it is still one of the most ambitious projects I have worked on.
Onboard Systems

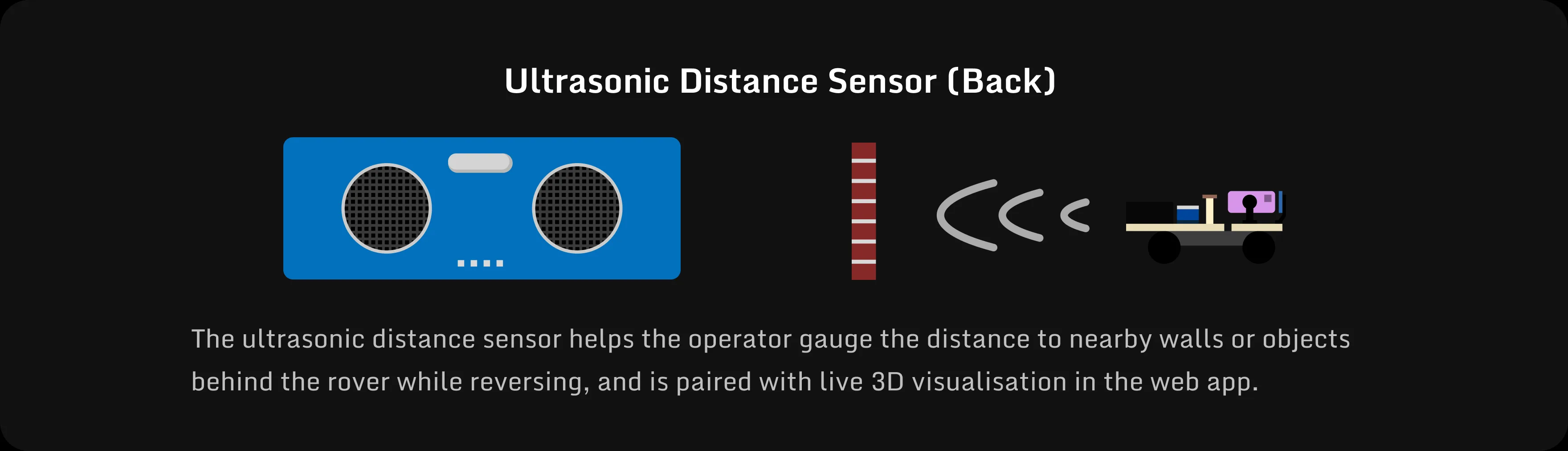

Ultrasonic Distance Sensor

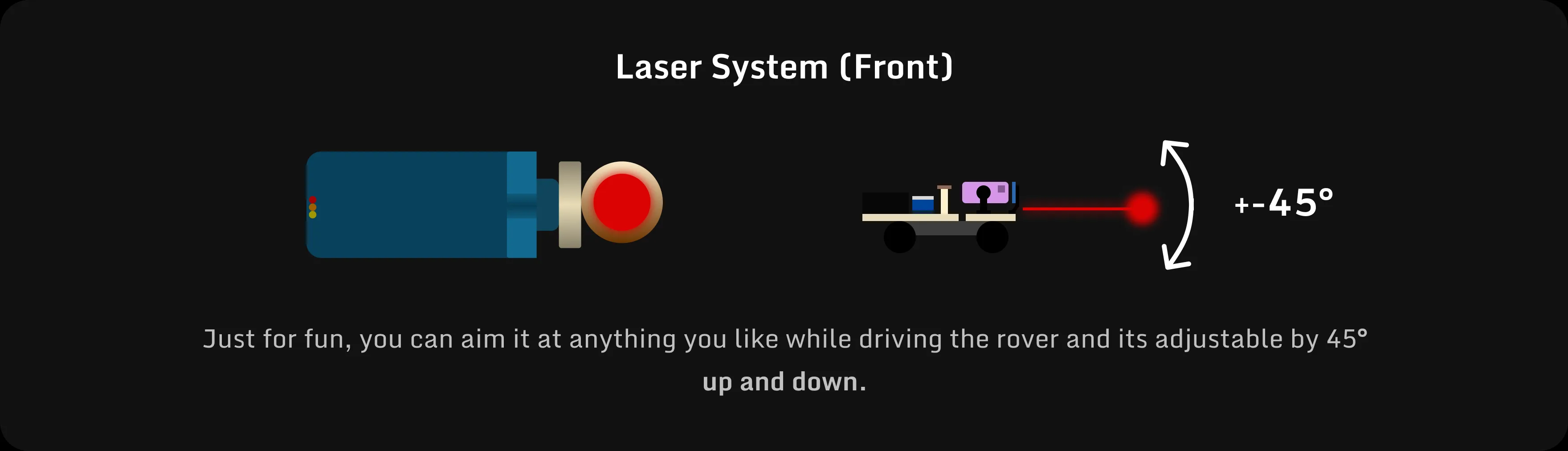

Laser System

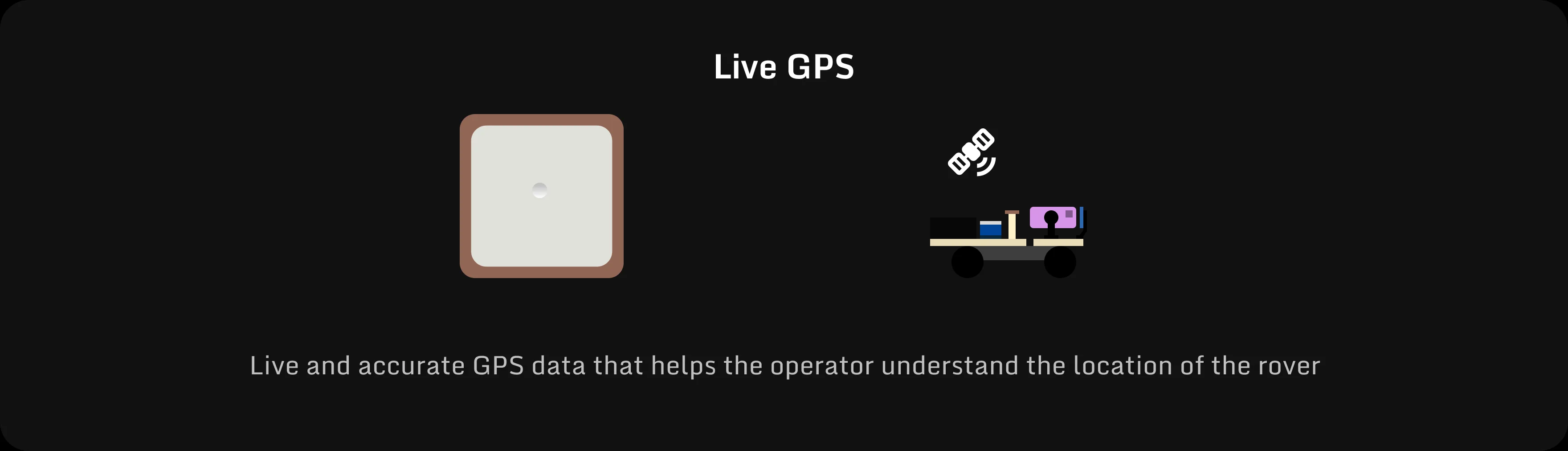

Live GPS

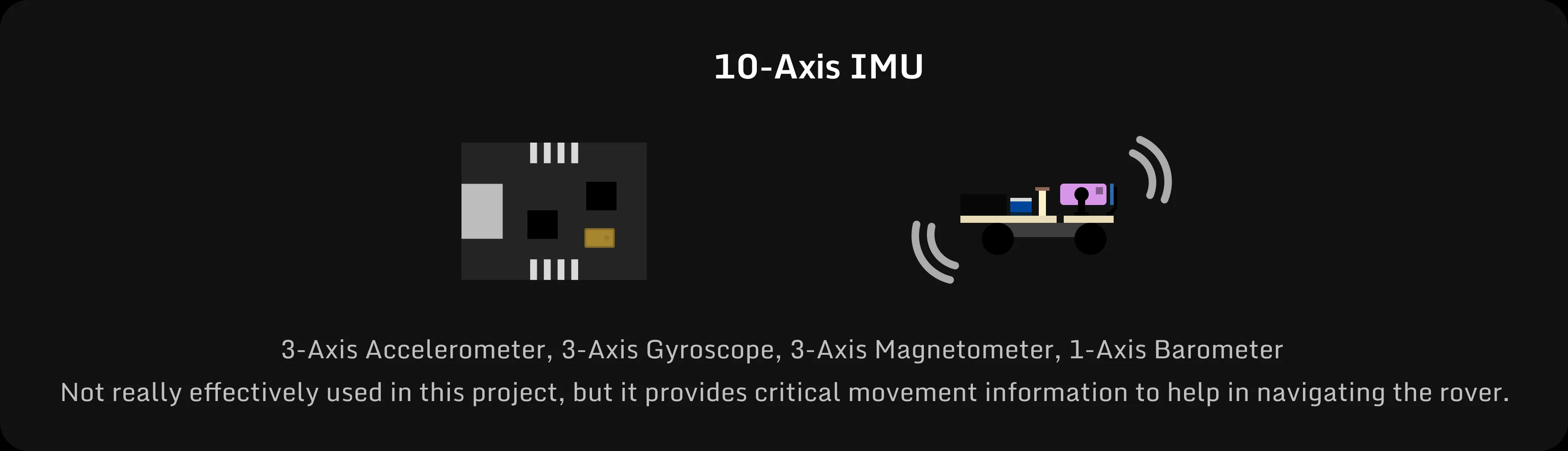

10 Axis IMU

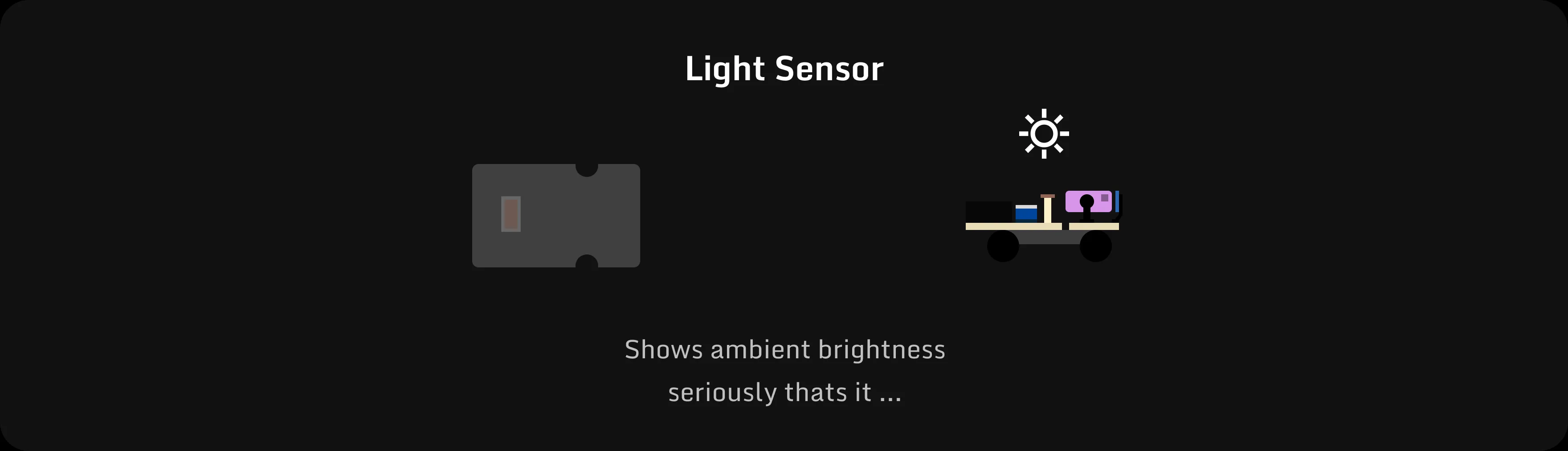

Light Sensor

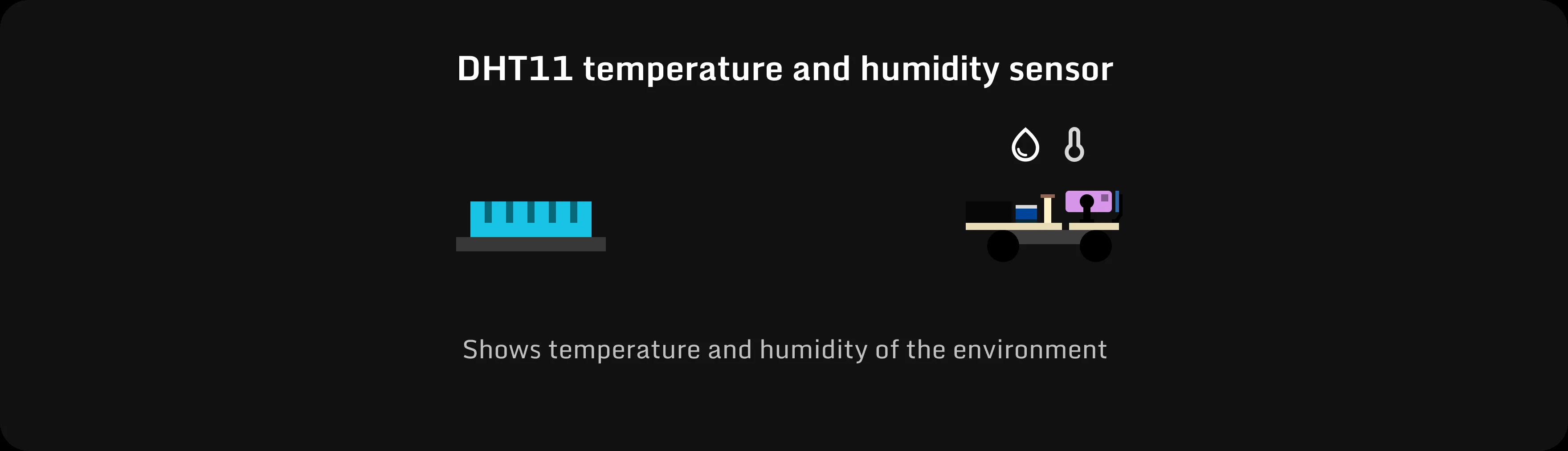

DHT11 Temp & Humidity

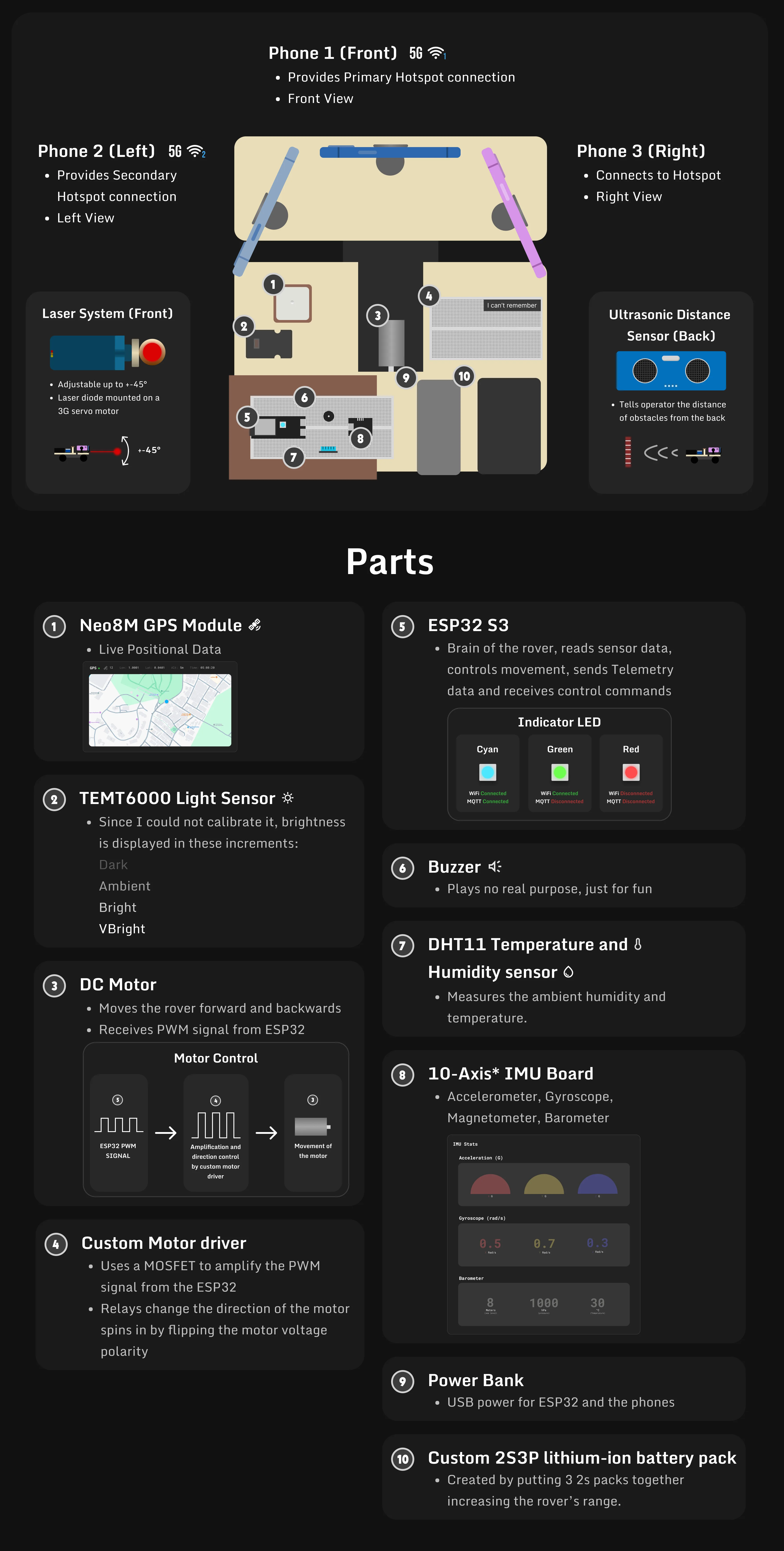

Technical Architecture

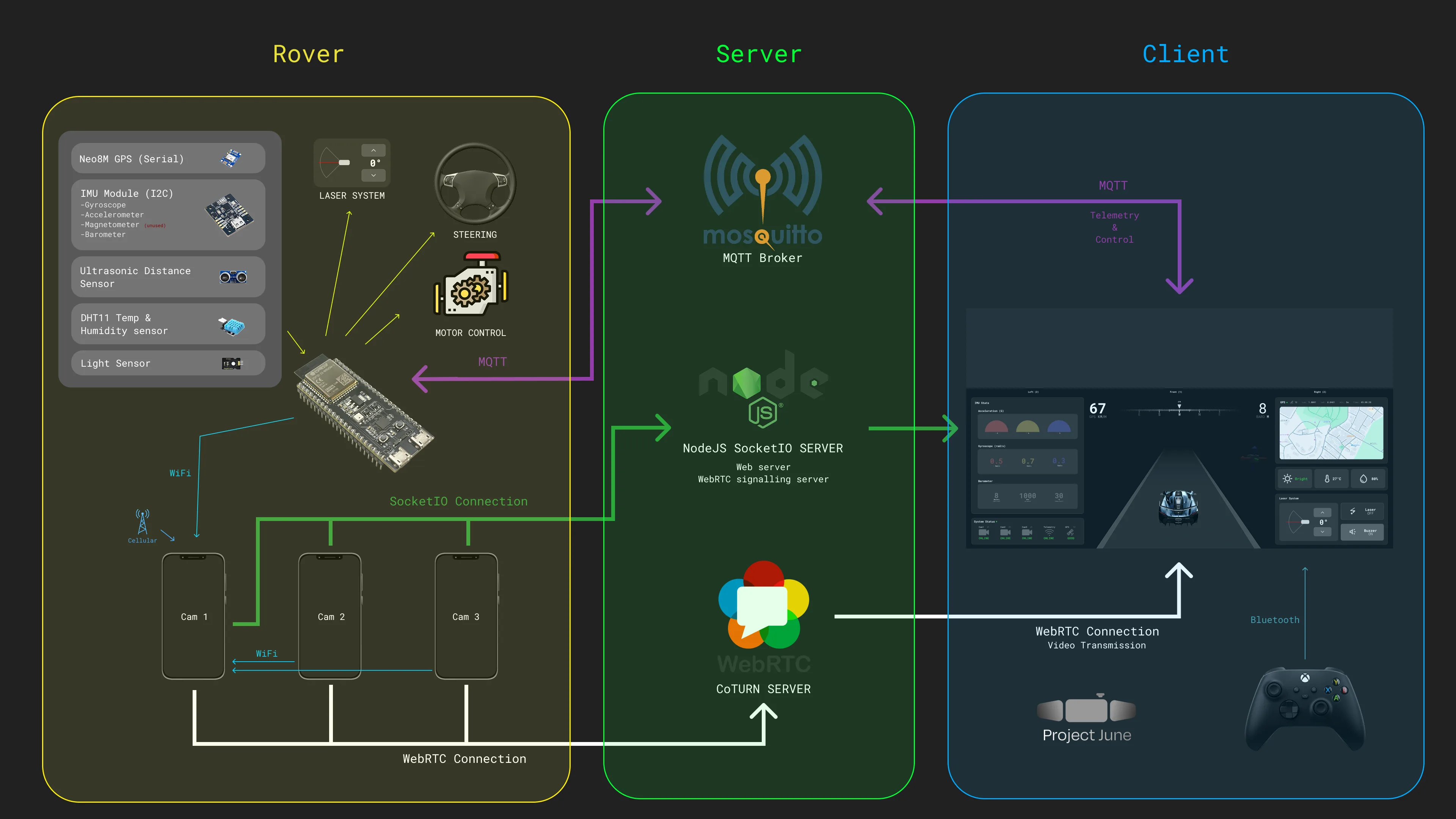

This is an overview of how each system functions and how they all interact with each other.
Live Stream System

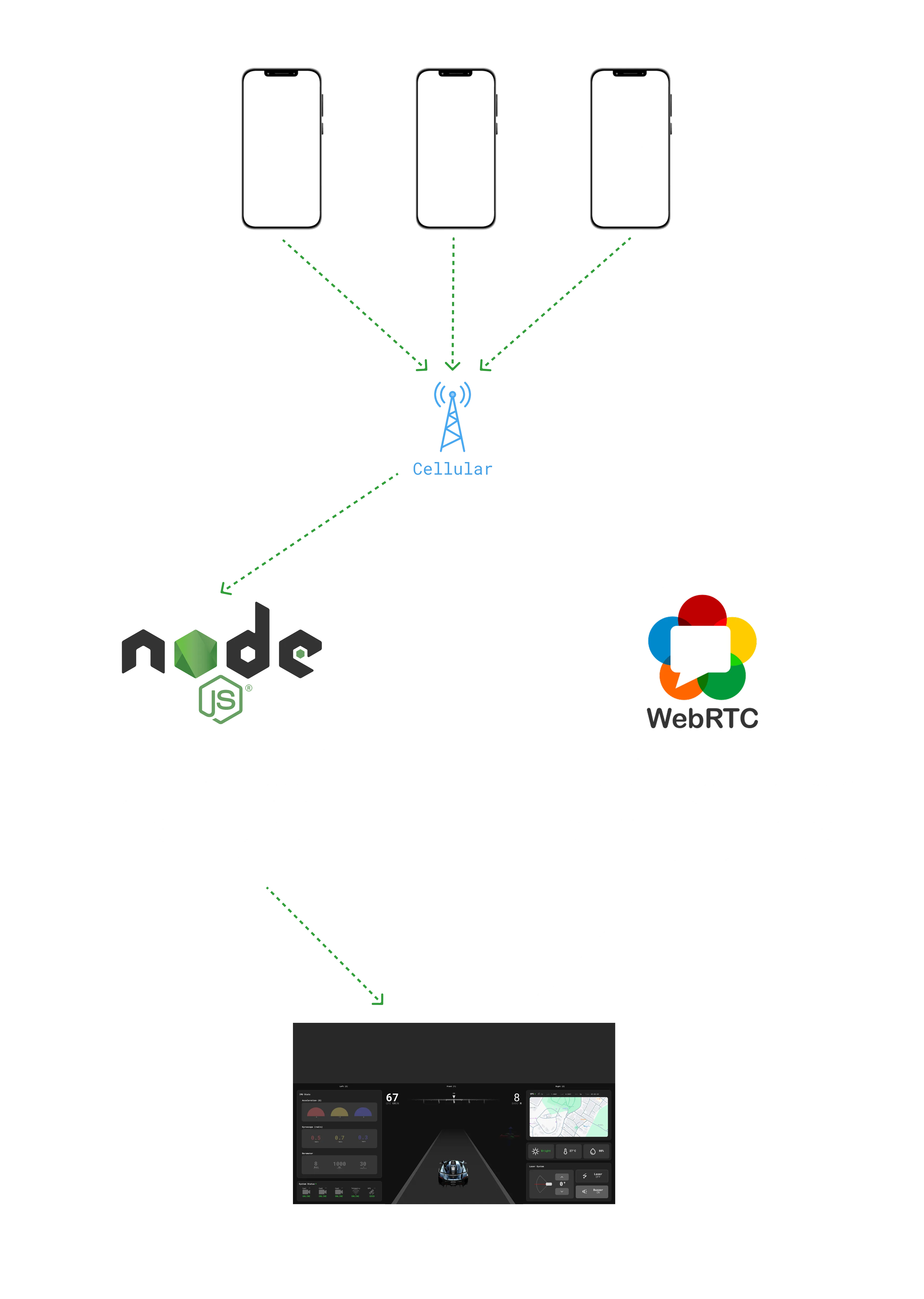

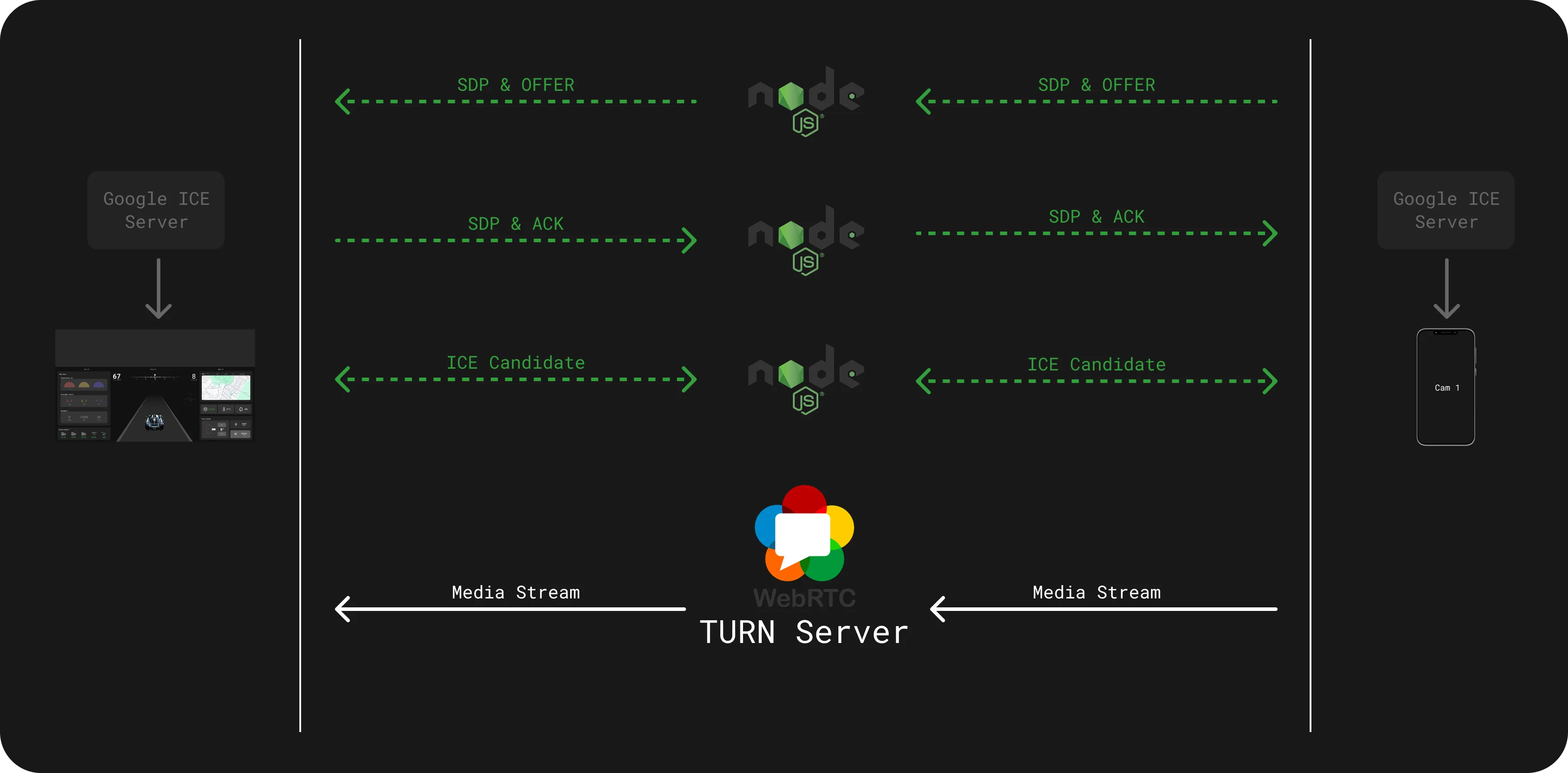

This diagram shows how the whole live streaming system works. It is 3 different WebRTC streams that send the live video to the client.
Here is roughly what the operator's console looked like while driving: the same signal path, telemetry and camera feeds laid out for a glance.
Xbox controller. Stick and trigger movements are read at the operator end and packaged into small command messages, a few times a second.
- Latitude1.4614°N
- Longitude103.8405°E
- Speed2.0km/h
- Altitude-12m
- Temp30.2°C
- Humidity65%
- Satellites21
- BrightnessvBright
- Location · GPS fixIrau Dr
Control & Telemetry System

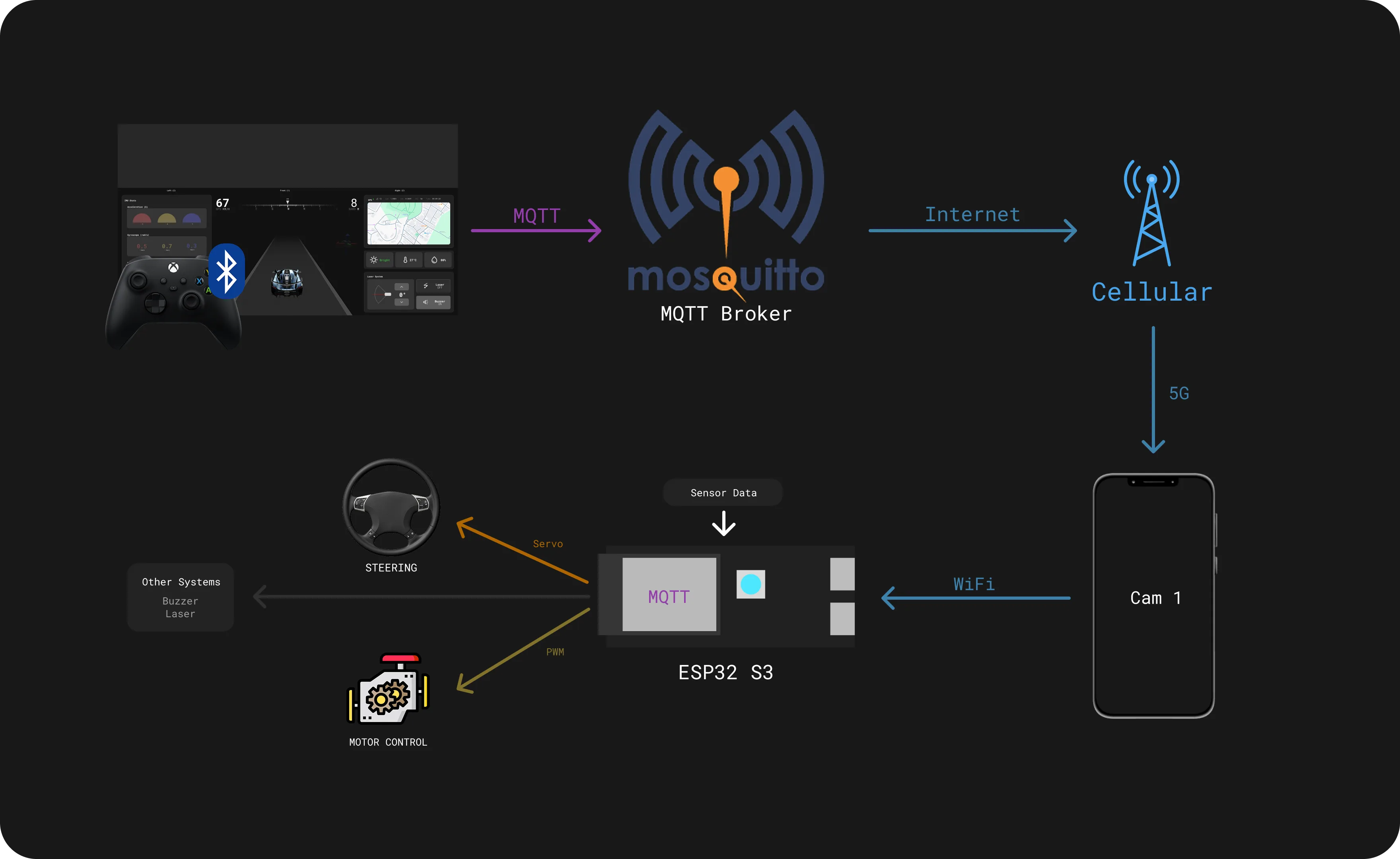

The control and telemetry system feeds sensor data to the client using an MQTT topic that the client is subscribed to. Another MQTT topic is used by the client to send movement and command messages back to the ESP32.
Signalling

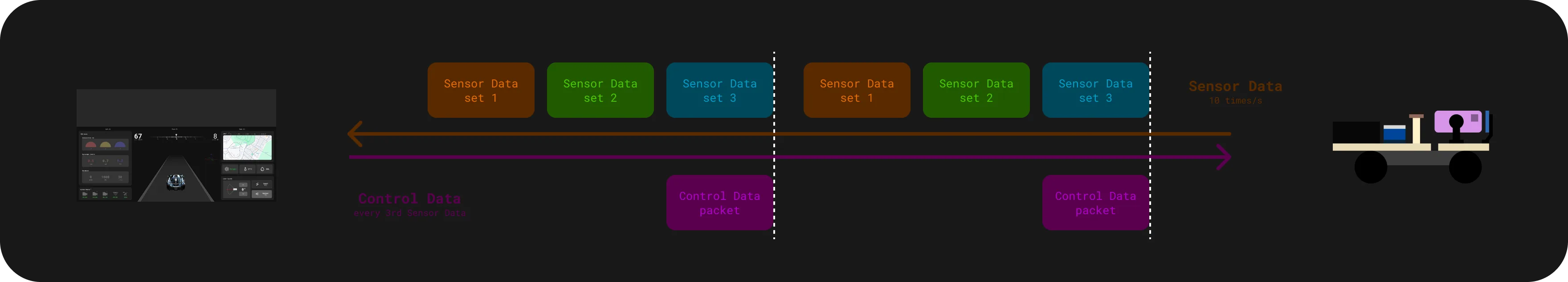

Because of an issue that has not yet been resolved, all sensor data could not be sent together in a single MQTT transmission. Instead, the data was divided into three separate packets and transmitted individually at approximately 10 Hz.
Software

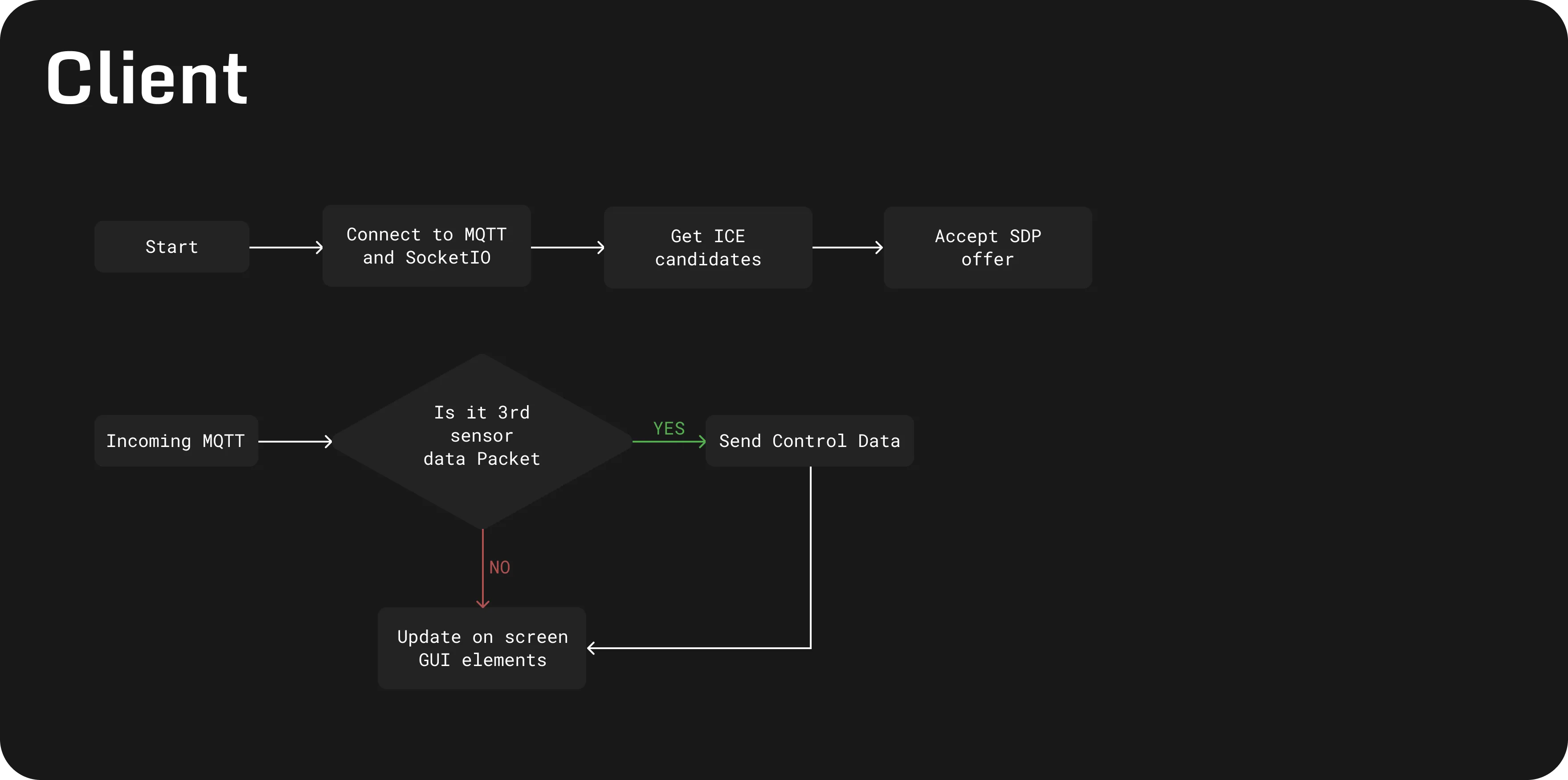

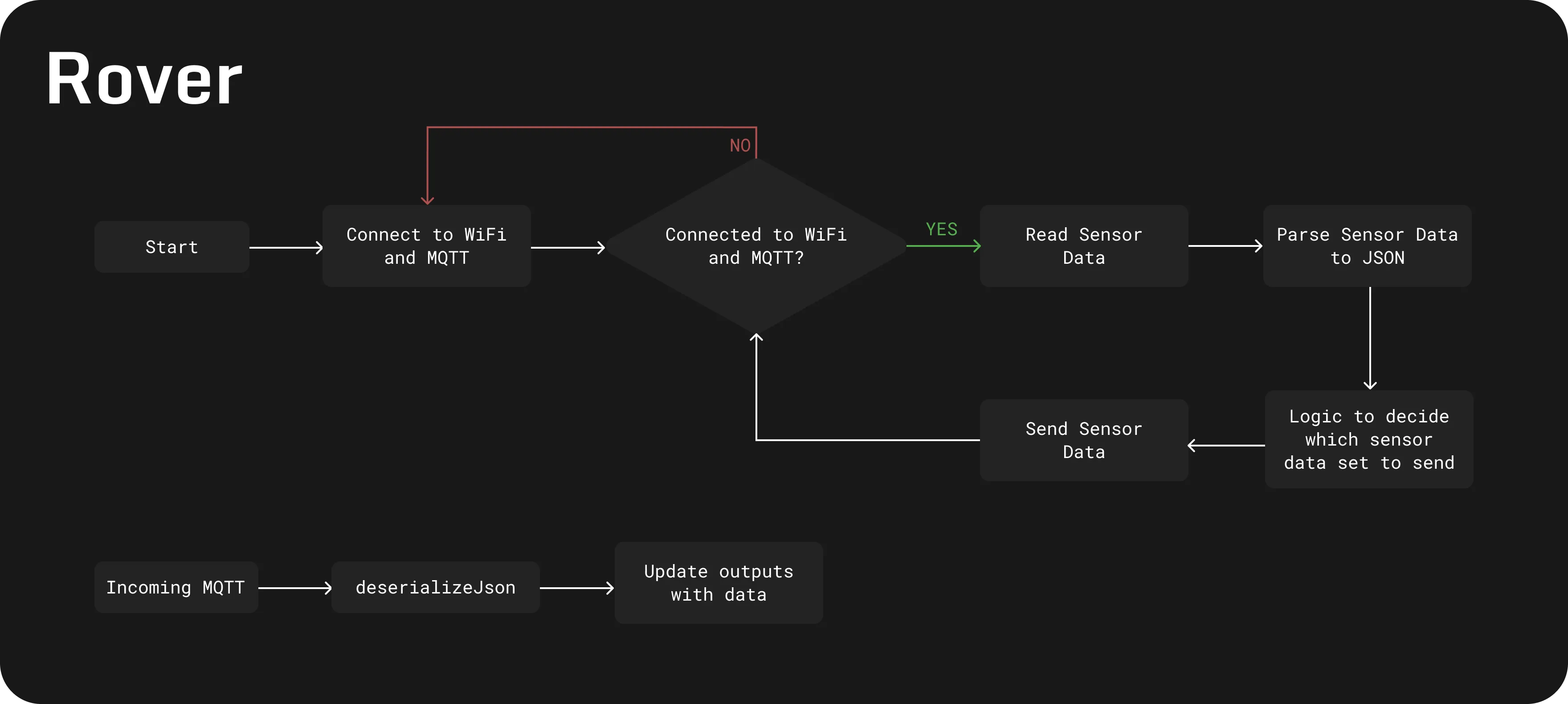

Here is the simplified flow chart of how the code works.
Software Design (Figma)
Spline 3D

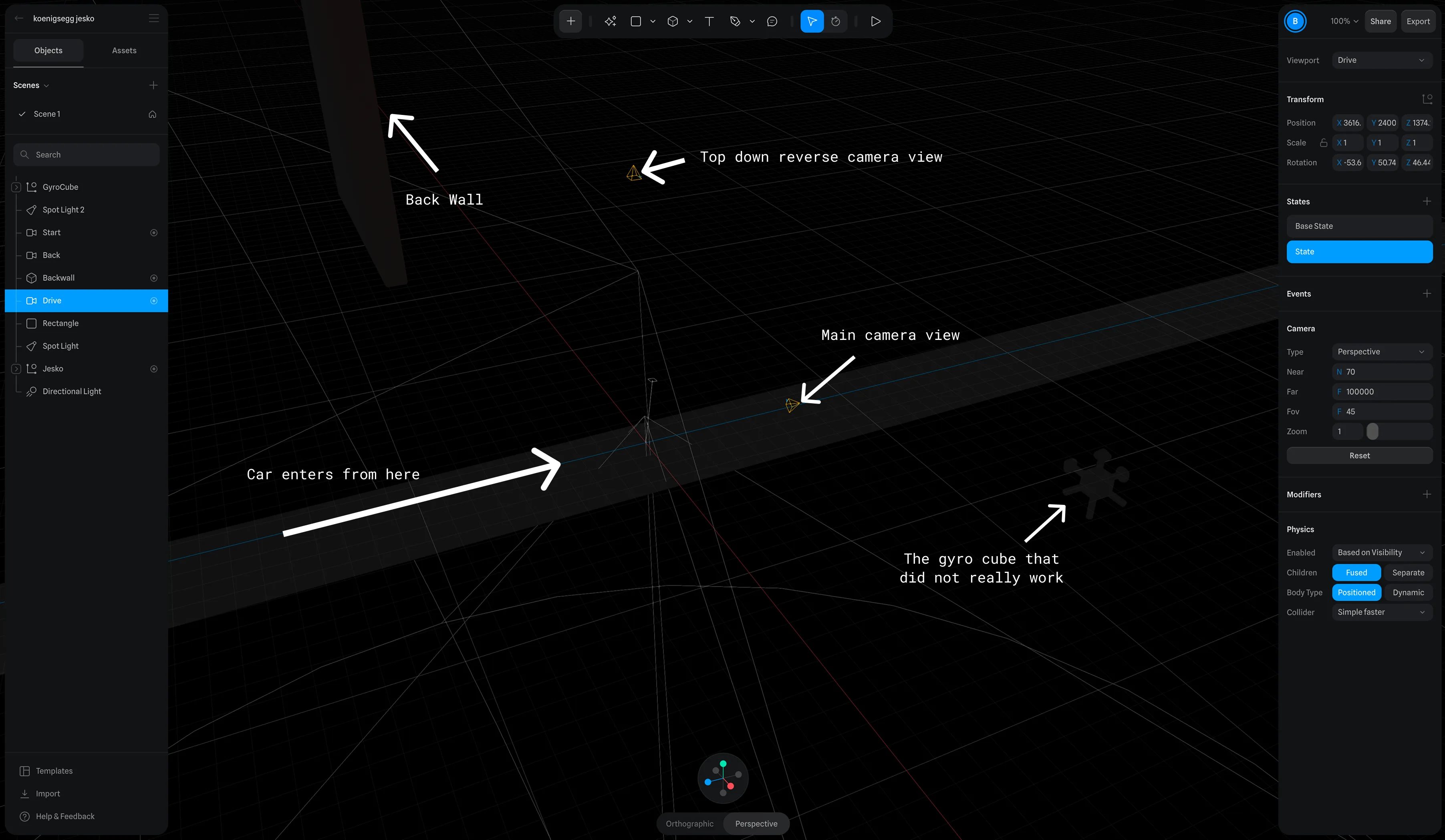

I used Spline 3D for the 3D elements in the UI. When you push the controller forward, the model moves into the forward view, and if you move it back, it goes into the reverse view.
Driving Project June
Driving Project June was an unforgettable experience. The roughly one-second delay between controller input and movement on the live feed, combined with the instability of the stream, made it challenging at times. Thinking about how my controller input had to travel through so many layers of systems, while the video feed was being sent from over 8 kilometres away, still blows my mind.
